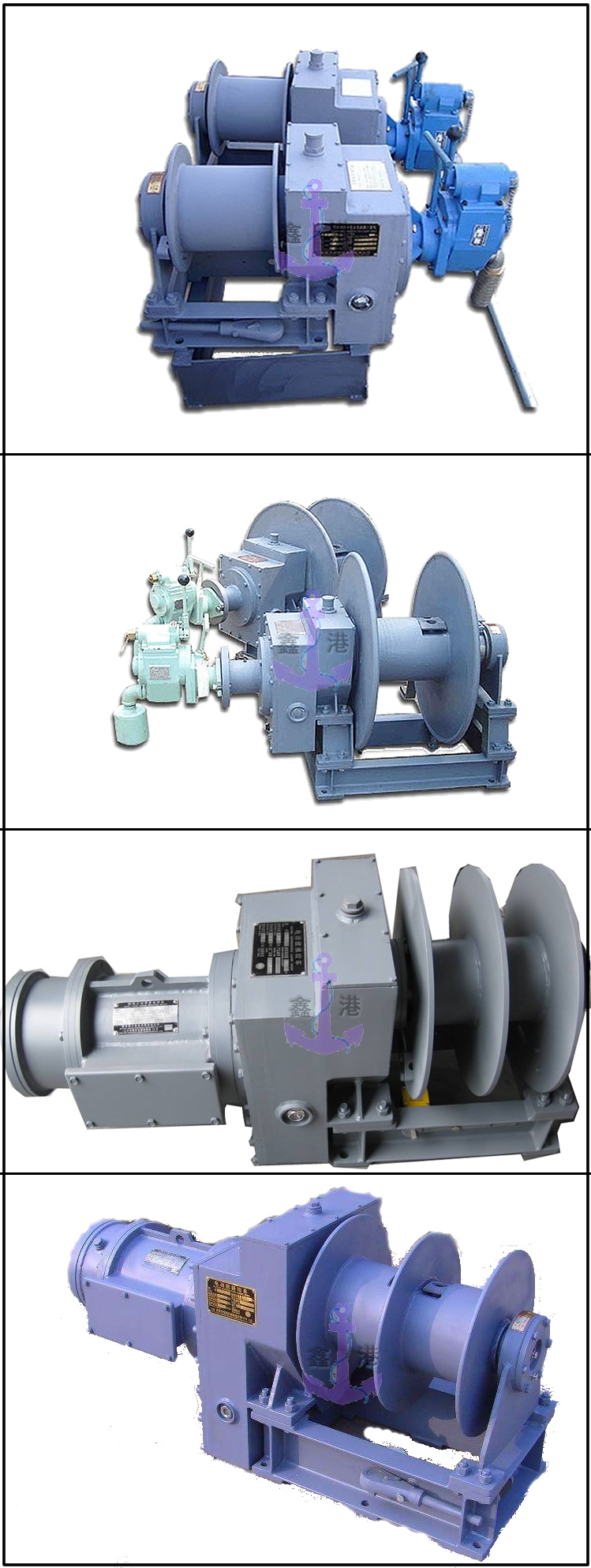

Air Motor Accommodation Ladder Winch

Update: 2018/8/5      View:
  • Brand:
  • Type:
  • Order Online
Introduction


Technical Specifications:



NAME

UNIT

SPECIFICATION

Air Motor

Type

/

TMYJ4.4-4

Power

Kw

4.4

Rated Revolution

rpm

800

Working Pressure

Mpa

0.59

Air Consumption

m3/min

5.2

Duty Factor

min

30

Total Efficiency

/

0.858

Manual Transmission Ratio

/

30.73

Air Transmission Ratio

/

75.43

Wire Rope Size

/

6*37-13-170-1

Wire Capacity

m

40

Winding Wire Layers on Drum

/

3

Hoisting Speed

m/min

8

Support Load

KN

30

Drum Load

KN

10


NAME

UNIT

SPECIFICATION

Air Motor

Type

/

SMF-5.5P-900S

Power

Kw

4

Rated Revolution

rpm

900

Working Pressure

Mpa

0.59

Air Consumption

m3/min

6

Duty Factor

min

30

Total Efficiency

/

0.858

Manual Transmission Ratio

/

30.73

Air Transmission Ratio

/

75.43

Wire Rope Size

/

6*37-13-170-1

Wire Capacity

m

50

Winding Wire Layers on Drum

/

3

Hoisting Speed

m/min

10

Support Load

KN

48

Drum Load

KN

16
