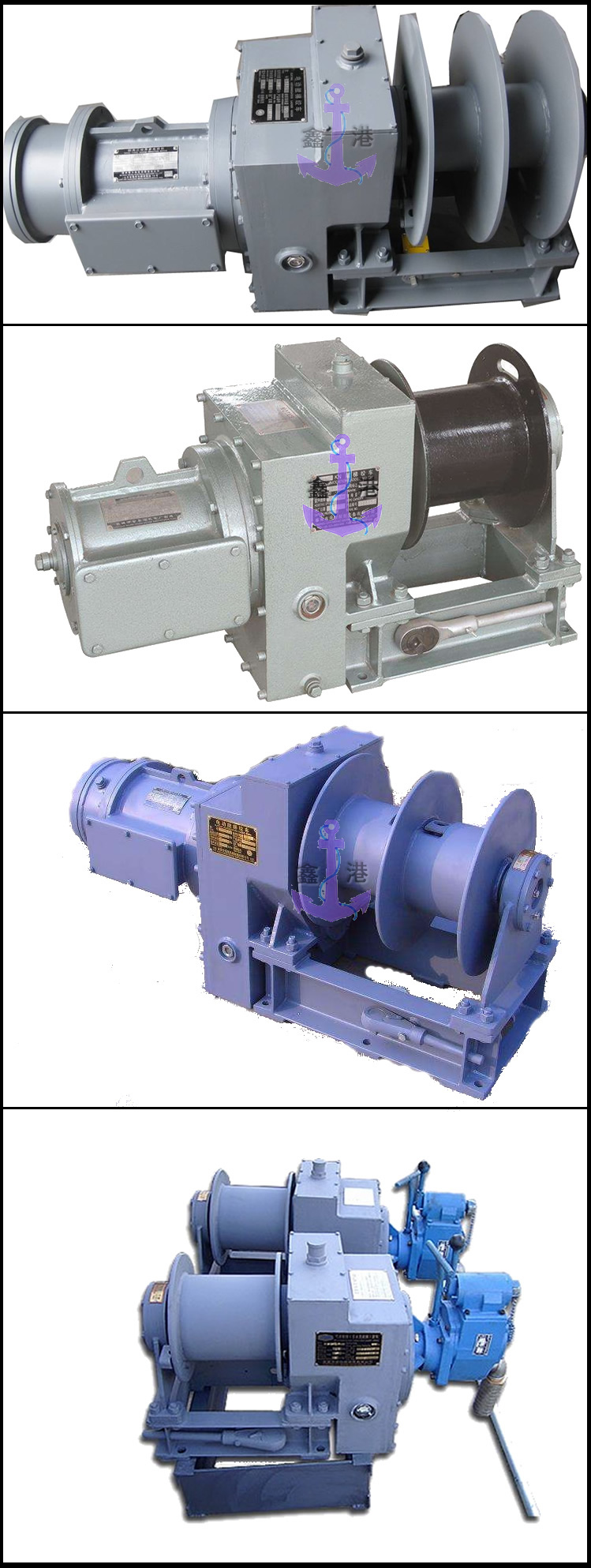

Electric Accommodation Ladder Winch

Update: 2018/8/5      View:
  • Brand:
  • Type:
  • Order Online
Introduction


Technical Specifications:

NAME

UNIT

SPECIFICATION

Electric Motor

Type

/

YZ112L-6-H

Rated Output

Kw

2.2

2.5

Rotate Speed

rpm

890

1100

Voltage Frequency

V, Hz

380, 50

440, 60

Duty Factor

min

30

Total Efficiency

/

0.83

Manual Transmission Ratio

/

30.73

Electric Transmission Ratio

/

75.43

Wire Rope Size

/

6*37-130-170-1

Wire Capacity

m

50

Winding Wire Layers on Drum

/

3

Hoisting Speed

m/min

8.09              10

Support Load

KN

30

Drum Load

KN

10




NAME

UNIT

SPECIFICATION

Electric Motor

Type

/

YZ132L-6-H

Rated Output

Kw

3.7

4

Rotate Speed

rpm

930

1130

Voltage Frequency

V, Hz

380, 50

440, 60

Duty Factor

min

30

Total Efficiency

/

0.858

Manual Transmission Ratio

/

30.73

Electric Transmission Ratio

/

69.48

Wire Rope Size

/

6*37-13-170-1

Wire Capacity

m

50

Winding Wire Layers on Drum

/

3

Hoisting Speed

m/min

9.3             11.3

Support Load

KN

48

Drum Load

KN

16
